Tundish

AT110

Add to wish list

with axial tolerance compensation
easy integration of the vapour barrier using the adhesive ribbon
non-trip installation according to DGUV 38 §12a thanks to step safe insert
with integrated level for position alignment of the tundish

Tundish with integrated step protection insert for setting base slab in concrete for optimum sealing to the underground sewer pipe. To compensate an offset (after concreting) between downpipe and base drain in any direction.

Facts

Advantages:

Saves rectangular recesses and therefore complex follow-up work
can be installed easily and quickly on-site
gastight and watertight connection to the base slab thanks to the integrated 3-ribbed seal
TPE sealing lips to seal underground sewage pipe
Step safe insert with perforation and dirt trap grooves can be used during construction to drain the base slab
Undercut for optimum fixing in concrete

Scope of delivery:

1 piece of clamping strap
1 piece of step safe insert

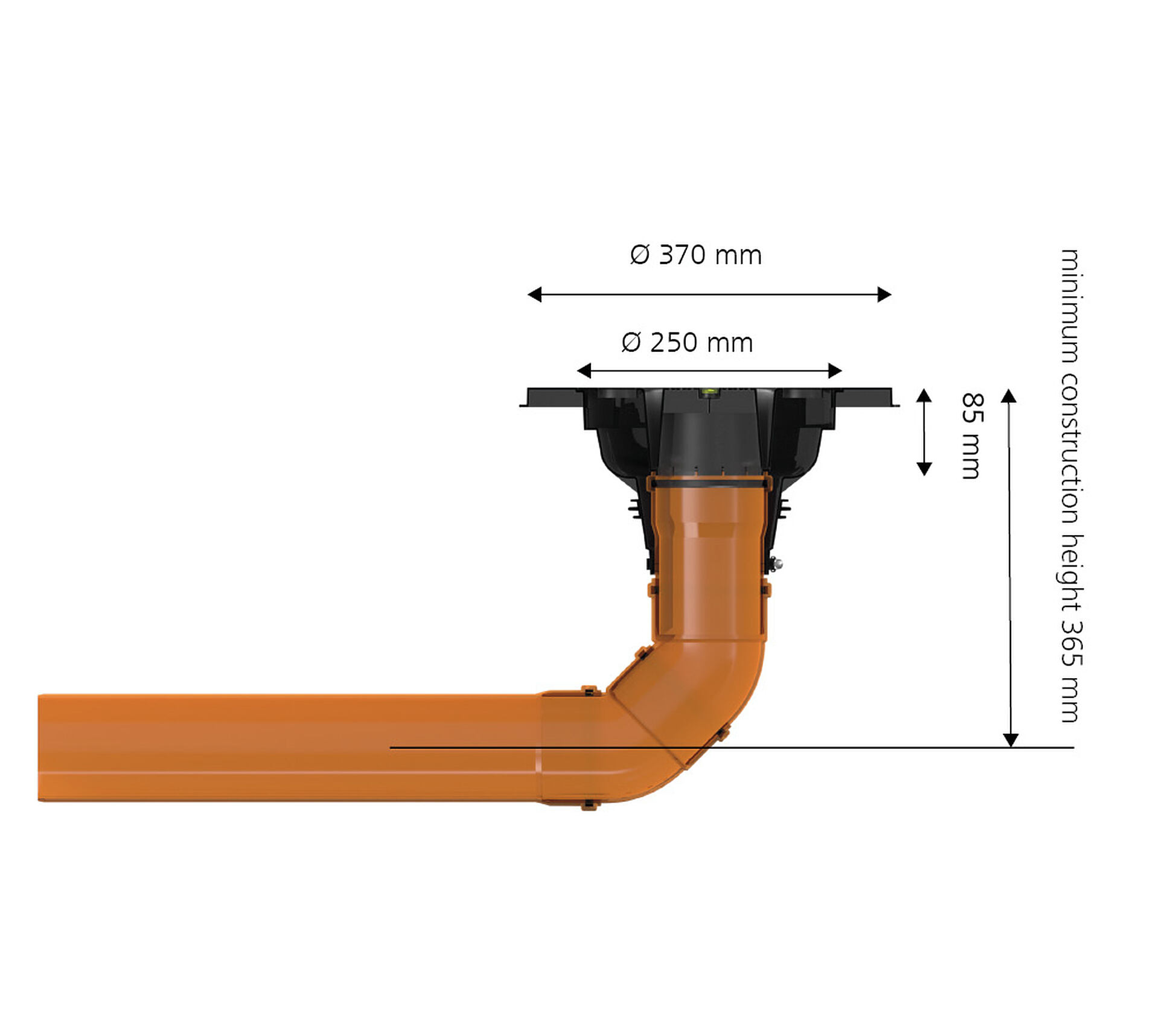

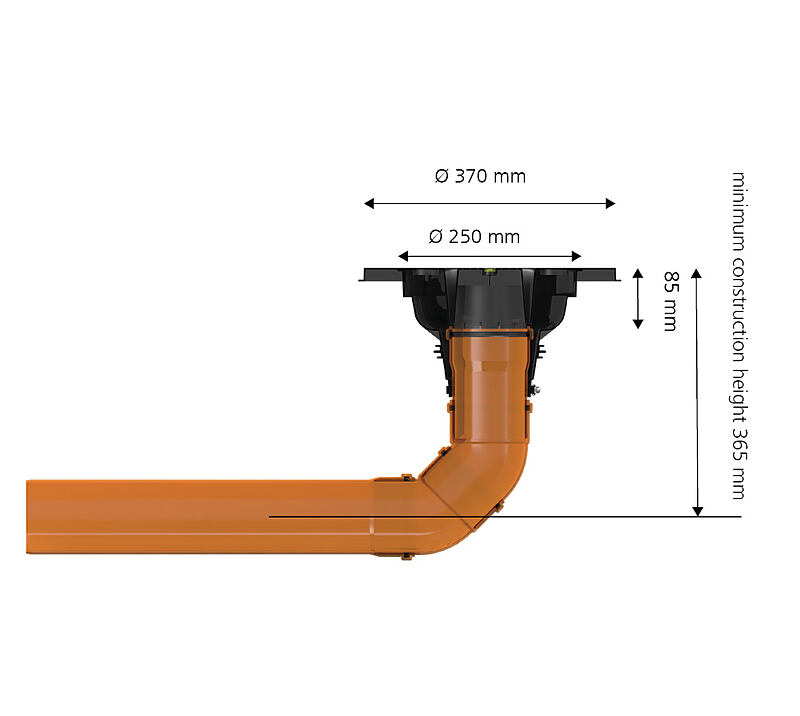

Dimensions:

Diameter: 385 mm
for underground sewage pipe Ø 110 mm

Properties:

Built-in stop in tundish for exact pipe positioning
50-mm surrounding flange for connecting the vapour barrier

Application range:

Water exposure class DIN 18533: W1-E
Waterproof concrete stress class 1 and 2

Material:

Step safe insert: PP
Funnel: ABS/TPE

Tightness:

gastight and watertight
radon tight

Tests/Standards:

KG2000 pipes to DIN EN 14758
KG pipes to DIN EN 13476-2

Downloads

Brochures

AT110 (PDF, 3MB)

Installation instructions

AT110 (PDF, 787KB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

suitable for medium pipe OD (mm)	Article code	Packing unit	Article number	GTIN
110	AT110	1	827001601	4052487171663	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
110	AT110	8	827001601	4052487224314	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
110	AT110	32	827001601	4052487224321	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
