Cable entries EarthingsInserts / new construction

Earthing fixed point

for weld or clamp connection

HEA S

Add to wish list

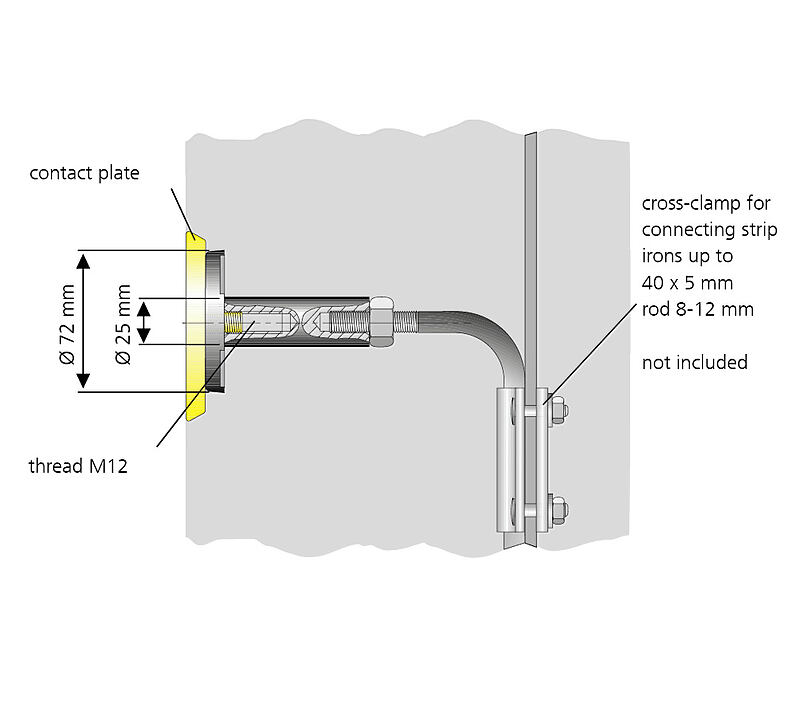

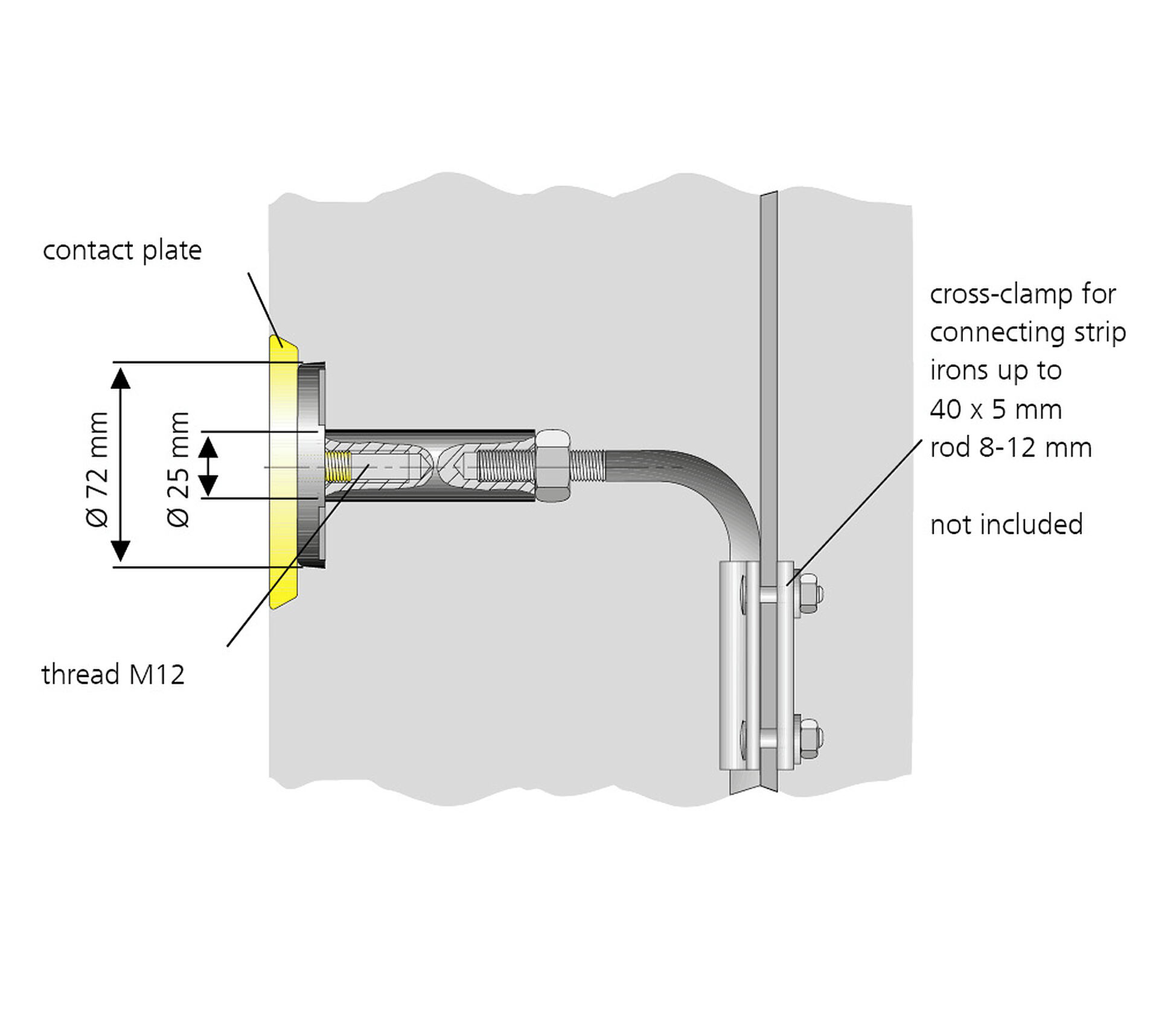

Earthing fixed point - for weld or clamp connection

patented twist resistance provided by special contour of contact washer

For earthing connection with screw-on steel rod, for installation flush with formwork. An earthing connection can be made with the thread in the conductor core. The HEA-S is preferentially inserted in in-situ concrete

Facts

Advantages:

M12 watertight connection thread (blind hole)
Resistant to corrosion

Scope of delivery:

1 piece of eat-resistant protective foil

Dimensions:

Conductor core: round, Ø 25 mm
Contact washer: Ø 72 mm
Minimum wall thickness: 200 mm

Application range:

Waterproof concrete stress class 1 and 2

Material:

Conductor core and contact washers: stainless steel V4A (AISI 316L)
Weld connection: St37

Tests/Standards:

Short-circuit-tested to VDE 0101
EN 50522

Downloads

Installation instructions

HEA S, HEA P (PDF, 960KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Minimum wall thickness (mm)	Threaded bolt	Article code	Article number	GTIN
200	M12	HEA S M12	1700080010	4052487044677	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	M16	HEA S M16	1700080020	4052487044691	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
